Booking Management

In Scheduler, seats in test centres are booked for candidates. The Enrolment/Booking endpoints can be used to retrieve test booking information, book seats in test centres for candidates, change, and cancel test bookings.

This article explains what calls can be made to the Scheduler API using the booking management resource.

Import this API into your Postman Workspace

NOTE: This article documents the requests in the Booking Management folder of the 'Scheduling System' Postman collection.

Integration Flow

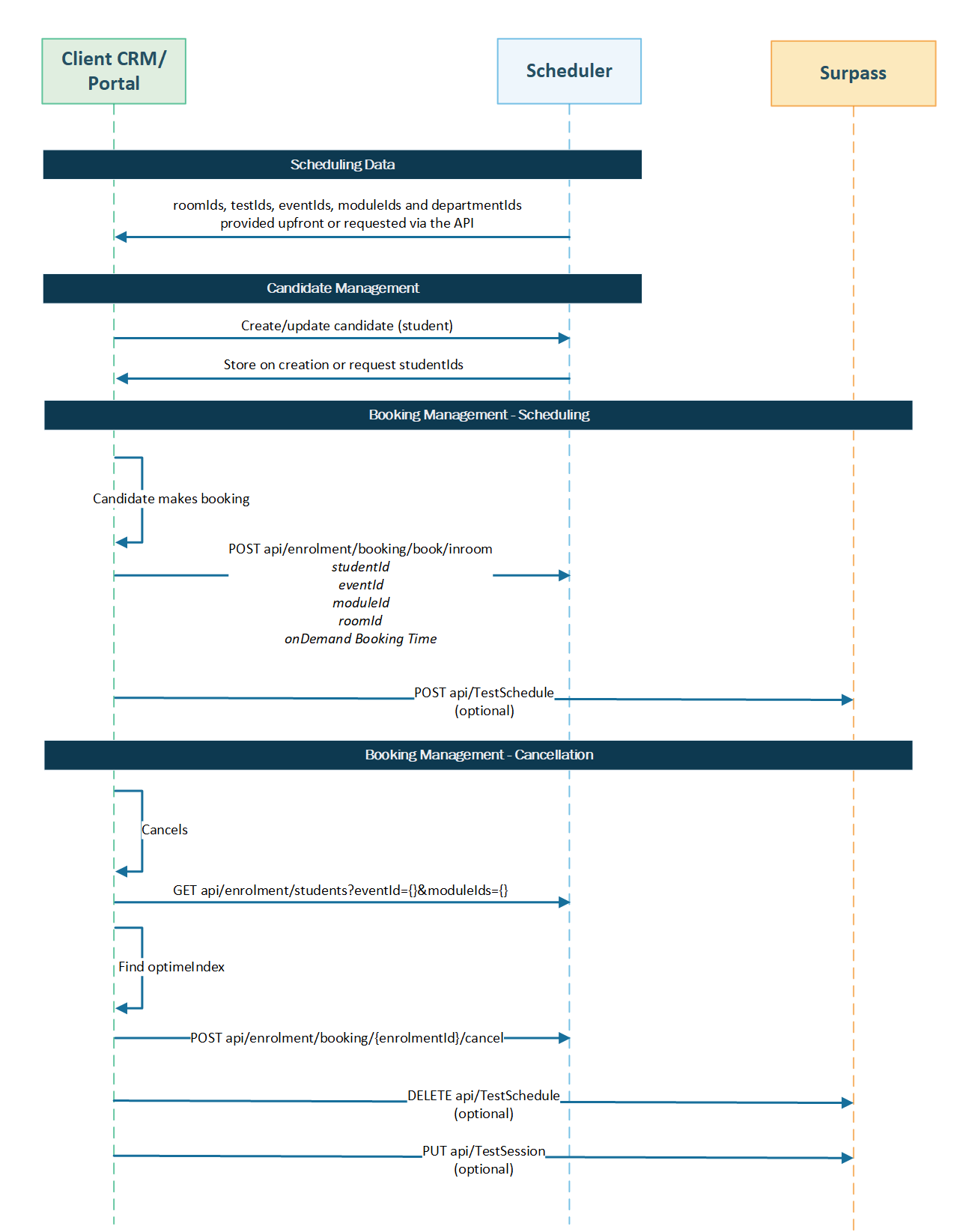

The following diagram shows the Booking Management integration flow:

NOTE: If taking payments for bookings, cancellation may be as a result of involve payment failure. enrolmentId can be stored in the CRM/Portal to remove additional requests to retrieve enrolment identifiers.

Retrieving a candidate’s test booking information

get /api/Enrolment/Students?eventId={eventId}

Send a request to the endpoint to retrieve information for a specific candidate’s test booking (enrolment) using its ID. Refer to the available parameters to influence the response, including a request body.

Parameters

Parameters are passed with the endpoint to influence the response. Header parameters are included in the request header. Path parameters are extensions of the endpoint, and query parameters follow ? after any path parameters.

Name	Parameter	Input	Description
authorization	header MANDATORY	`Bearer {token}`	A bearer token must be passed to authorise the user’s request, where `{token}` is the token string.
content-type	header MANDATORY	`multipart/form-data`	Determines that there is form data being passed in the request.
accept	header MANDATORY	`application/json`	Determines data format of the response, which must be JSON.
id	path OPTIONAL	`/api/Enrolment/Students?eventId={eventId}`	Returns information for the specified test booking, where `{eventId}` is the test’s unique OptimeIndex identifier.

Sample request

The following is a sample request body to search for a department, which is made up of text-based form-data.

Name	Key	Input	Description
eventId	text	`integer`	The test’s unique OptimeIndex identifier.
includeEligibleStudents	text	`Boolean`	Determines whether to only include eligible candidates (`true`) or not (`false`). NOTE: This parameter is only applicable if eligibility is configured for the test booking.
moduleIds	text	`integer`	The unique OptimeIndex identifier of the test booking’s module. NOTE: This parameter is only applicable if eligibility is configured for the test booking.

Sample response

If successful, the HTTP status code will be 200 and the response body will contain the information in JSON format as requested.

{
    "bookedStudents": [
        {
            "optimeIndex": 1,
            "id": "TestBooking1",
            "forename": "Sanjib",
            "surname": "Datta",
            "image": null,
            "departmentIds": [
                1
            ],
            "eventId": 1,
            "roomId": 1,
            "bookedDate": "2024-08-28T08:15:00",
            "enrolmentDetails": {
                "optimeIndex": 1,
                "eventId": 1,
                "studentId": 1,
                "status": "Booked",
                "attemptNum": 1,
                "enrolmentResultType": null,
                "paymentModel": {
                    "paymentMethod": null,
                    "paymentResponsibility": null,
                    "paymentStatus": null,
                    "paymentDueBy": null,
                    "paymentUrl": null,
                    "paymentLink": null,
                    "paymentReference": "e6a5ec8a-13b9-4b8e-8fce-33c2e021a323",
                    "cost": null,
                    "isPaymentPending": false,
                    "stripeReference": null,
                    "stripePaymentMethodId": null,
                    "stripeToken": null,
                    "stripeRefundId": null,
                    "stripeRefundStatus": null,
                    "stripeClientSecret": null,
                    "wpmPaymentRequest": null
                },
                "appealUpheld": false,
                "appealDetails": null,
                "complaintDetails": null,
                "reasonableAdjRequests": null,
                "reasonableAdjDecision": null,
                "onDemandBookingId": 1
            }
        },
        {
            "optimeIndex": 2,
            "id": "TestBooking2",
            "forename": "Heather",
            "surname": "Foster",
            "image": null,
            "departmentIds": [
                1
            ],
            "eventId": 2,
            "roomId": 1,
            "bookedDate": "2024-08-29T11:00:00",
            "enrolmentDetails": {
                "optimeIndex": 2,
                "eventId": 2,
                "studentId": 2,
                "status": "Booked",
                "attemptNum": 1,
                "enrolmentResultType": null,
                "paymentModel": {
                    "paymentMethod": null,
                    "paymentResponsibility": null,
                    "paymentStatus": null,
                    "paymentDueBy": null,
                    "paymentUrl": null,
                    "paymentLink": null,
                    "paymentReference": "6e4c1af1-874a-4b95-8bdc-a00febb13cb1",
                    "cost": 0,
                    "isPaymentPending": false,
                    "stripeReference": null,
                    "stripePaymentMethodId": null,
                    "stripeToken": null,
                    "stripeRefundId": null,
                    "stripeRefundStatus": null,
                    "stripeClientSecret": null,
                    "wpmPaymentRequest": null
                },
                "appealUpheld": false,
                "appealDetails": null,
                "complaintDetails": null,
                "reasonableAdjRequests": null,
                "reasonableAdjDecision": null,
                "onDemandBookingId": 2
            }
        }
    ],
    "eligibleStudents": []
}

Booking a seat in a test centre room

post /api/Enrolment/Booking/Book/InRoom

Send a request to the endpoint to book a seat at a test centre room for a specified candidate.

Parameters

Name

Parameter

Input

Description

authorization

header

MANDATORY

Bearer {token}

A bearer token must be passed to authorise the user’s request, where {token} is the token string.

content-type

header

MANDATORY

application/json

Determines data format of the request, which must be JSON.

accept

header

MANDATORY

application/json

Determines data format of the response, which must be JSON.

Sample request

The following is a sample request body to book a seat at a test centre room for a specified candidate.

{
  "studentId": 1,
  "eventId": 1,
  "moduleId": 1,
  "roomId": 1,
  "isOnline": false,
  "onDemandBookingTime": "2024-12-16T08:00:00"
}

EXAMPLE: In this sample request, candidate 1 is booked for test (event) 1, which is part of module 1, in room 1 at 08:00 on 16/12/2024.

Sample response

If successful, the HTTP status code will be 200 and the response body will contain the new test booking’s details.

{
    "returnUrl": "Payment/Confirmation/ab840517-fce8-4641-89ee-c34cb5497bf1"
}

Assigning a test booking result to book a resit test

put /api/Enrolment/Booking/Bulk/Result

If a test has been successfully taken by a candidate (student), you can use the /api/Enrolment/Booking/Book/InRoom endpoint to book a resit. Tests that have not been taken by a candidate must be assigned a result before they can be rebooked as a resit.

The test booking (enrolment) to be assigned a result is specified in the request body.

Parameters

Name

Parameter

Input

Description

authorization

header

MANDATORY

Bearer {token}

A bearer token must be passed to authorise the user’s request, where {token} is the token string.

content-type

header

MANDATORY

application/json

Determines data format of the request, which must be JSON.

accept

header

MANDATORY

application/json

Determines data format of the response, which must be JSON.

Sample request

The following is a sample request body to assign a result to a specified test booking.

[
    {
        "enrolmentId": 1,
        "enrolmentResultTypeId": 2
    }
]

EXAMPLE: In this sample request, test booking (enrolment) 1 is assigned a fail (2).

Moving a test booking

post /api/Enrolment/Booking/{enrolmentId}/Move

Send a request to the endpoint to move a test booking’s location, room, date, or to a different test (event).

Parameters

Name	Parameter	Input	Description
authorization	header MANDATORY	`Bearer {token}`	A bearer token must be passed to authorise the user’s request, where `{token}` is the token string.
content-type	header MANDATORY	`multipart/form-data`	Determines that there is form data being passed in the request.
accept	header MANDATORY	`application/json`	Determines data format of the response, which must be JSON.
enrolmentId	path MANDATORY	`/api/Enrolment/Booking/{enrolmentId}/Move`	Moves the specified test booking, where `{enrolmentId}` is the test booking’s unique OptimeIndex identifier.

Request schema

The following table contains the available text-based form-data parameters to move a test booking.

Name	Key	Input	Description
moveModel[IsMoveEventAction]	text	`Boolean`	Determines whether the request is to move a test booking (true) or not (false).
moveModel[CanMove]	text	`Boolean`	Determines whether the request is to move a test booking (true) or not (false).
moveModel[MoveFromEventId]	text	`integer`	The unique OptimeIndex identifier of the test booking from which you are moving the test booking.
moveModel[MoveFromRoomId]	text	`integer`	The unique OptimeIndex identifier of the room from which you are moving the test booking.
moveModel[MoveToOnDemandDate]	text	`string`	The date to which you are moving the test booking, in `YYYY-MM-DDTHH:MM:SS` format.
moveModel[MoveFromOnDemandDate]	text	`string`	The date from which you are moving the test booking, in `YYYY-MM-DDTHH:MM:SS` format.
moveModel[Enrolment][optimeIndex]	text	`integer`	The unique OptimeIndex identifier of the test booking.
moveModel[Enrolment][studentId]	text	`integer`	The candidate’s unique OptimeIndex identifier.
moveModel[Enrolment][eventId]	text	`integer`	The unique OptimeIndex identifier of the test (event) to which you are moving the test booking.
moveModel[Enrolment][roomId]	text	`integer`	The unique OptimeIndex identifier of the test centre/room to which you are moving the test booking.

Cancelling a test booking

put /api/Enrolment/Booking/{enrolmentId}/Cancel

Send a request to the endpoint to cancel a test booking (enrolment) by ID.

Parameters

Name	Parameter	Input	Description
authorization	header MANDATORY	`Bearer {token}`	A bearer token must be passed to authorise the user’s request, where `{token}` is the token string.
content-type	header MANDATORY	`application/json`	Determines data format of the request, which must be JSON.
accept	header MANDATORY	`application/json`	Determines data format of the response, which must be JSON.
enrolmentId	path MANDATORY	`/api/Enrolment/Booking/{enrolmentId}/Cancel`	Cancels the specified test booking, where `{enrolmentId}` is the test booking’s unique OptimeIndex identifier.

Sample request

The following is a sample request body to cancel the specified test booking.

{
    "optimeIndex": 1,
    "bookingResource": "Event",
    "studentId": 1,
    "status": "Cancelled",
    "cancellationReason": "Other",
    "cancellationMessage": "Payment not received",
    "cancellationDate": "2024-08-06 20:52:27"
}

EXAMPLE: In this sample request, candidate 1‘s specified test booking (enrolment) is cancelled.

Cancelling multiple test bookings

put /api/Enrolment/Booking/Bulk/CancelStudents

Send a request to the endpoint to cancel test bookings.

Parameters

Name

Parameter

Input

Description

authorization

header

MANDATORY

Bearer {token}

A bearer token must be passed to authorise the user’s request, where {token} is the token string.

content-type

header

MANDATORY

multipart/form-data

Determines that there is form data being passed in the request.

accept

header

MANDATORY

application/json

Determines data format of the response, which must be JSON.

Request schema

The following table contains the available text-based form-data parameters to cancel multiple test bookings.

Name	Key	Input	Description
enrolment[eventId]	text	`integer`	The test booking’s unique OptimeIndex identifier.
enrolment[status]	text	`enumeration`	The status you are changing the booking to, which should be `Cancelled`.
enrolment[cancellationReason]	text	`enumeration`	The reason for cancellation. The default reasons are `Illness`, `Booked In Error`, `Withdrawn`, `Absent`, `Partially Completed`, or `Other`.
enrolment[cancellationMessage]	text	`string`	If enrolmentModel[cancellationReason] is `Other`, the custom cancellation reason.
enrolment[cancellationDate]	text	`string`	The cancellation date, in `YYYY-MM-DD HH:MM:SS` format.
enrolment[bookingResource]	text	`enumeration`	The test booking (enrolment) resource that is being cancelled, which should be `Event`.
enrolmentIds[]	text	`array`	`enrolmentId` or `bookingId`s to be cancelled. NOTE: If you are passing multiple identifiers, pass separate `enrolmentIds[]` form-data parameters for each enrolment.
studentIds[]	text	`array`	The unique OptimeIndex identifiers of the candidates (students) to be cancelled. NOTE: If you are passing multiple identifiers, pass separate `studentIds[]` form-data parameters for each candidate.

Sample response

If successful, the HTTP status code will be 200 and the response body will contain the cancelled test bookings’ details.

[
    {
        "studentId": 1,
        "enrolmentId": 1,
        "onDemandBookingId": 1,
        "cancelledOnBehalf": true,
        "cancellationReason": "Other",
        "cancellationMessage": "Test has been cancelled due to unforeseen circumstances.",
        "enrolmentResource": "Test",
        "enrolmentType": "On-Demand",
        "cost": 0,
        "enrolmentPaymentRef": "7e129952-b79a-4931-a93c-8a16852d8984",
        "stripePaymentRef": null,
        "stripeRefundId": null,
        "stripeRefundStatus": null,
        "enrolmentDate": null,
        "departmentId": 1,
        "roomId": 1,
        "week": null,
        "timeslotId": null,
        "duration": null,
        "resourceIndex": 1,
        "resourceDesc": "Test1",
        "cancelledAddons": null
    },
    {
        "studentId": 2,
        "enrolmentId": 2,
        "onDemandBookingId": 2,
        "cancelledOnBehalf": true,
        "cancellationReason": "Other",
        "cancellationMessage": "Test has been cancelled due to unforeseen circumstances.",
        "enrolmentResource": "Test",
        "enrolmentType": "On-Demand",
        "cost": 0,
        "enrolmentPaymentRef": "b47db10e-273c-448a-b46b-9a03eb37b66d",
        "stripePaymentRef": null,
        "stripeRefundId": null,
        "stripeRefundStatus": null,
        "enrolmentDate": null,
        "departmentId": 1,
        "roomId": 1,
        "week": null,
        "timeslotId": null,
        "duration": null,
        "resourceIndex": 1,
        "resourceDesc": "Test1",
        "cancelledAddons": null
    }
]
